1982 Tartan 37 - new engine, sails ... etc.

Just listed !!


Tartan 37 - Classic good looks The Tartan 37 probably has the most devoted owners and fans of any boat ever built by Tartan. She is one of the truly classis boats of all time. This keel/centerboard boats sails incredibly well, will go anywhere and with Tartan's great workmanship should last (almost) forever.

This particular vessel, has had many, many upgrades. New engine, new sails, full winter cover ...Tartan 37 salondetails to follow.

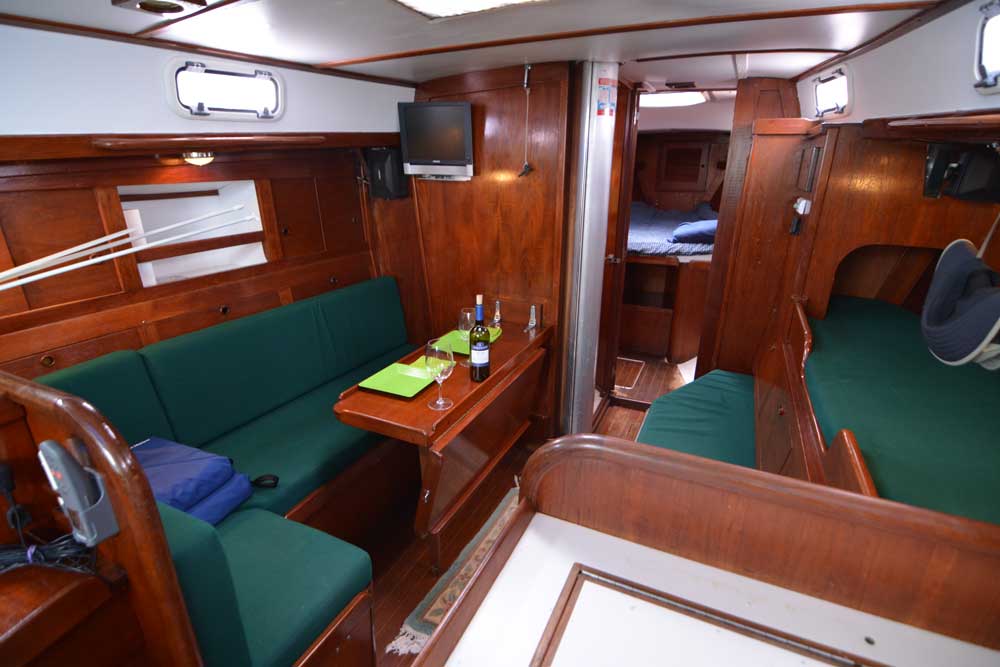

This is the traditional Tartan 37 layout. The salon features an L-shaped settee to port which can convert to a double, with a table with a single leaf. The dining table fold up against the forward bulkhead and extends to easily seat five or six.  This forms a dinette to port, with the option of adding a guest or two on the starboard settee. The starboard side, features a single settee which can extend to a single berth. Behind that is a sea berth. The traditional interior is beautifully finished with mahogany and a teak and holly cabin sole.

There are three opening ports, and a large overhead opening hatch. There is storage behind all of the seating and under pilot berth.

The galley is to starboard at the base of the companionway. It features a double basin sink (New 2012) with a new spray faucet (New 2014) and new Microwave (2012). The large icebox has Adler Barbour refrigeration (it does need a new compressor), and a small freezer compartment. It has a Princess Gourmet II Double burner gimbaled Stove/Oven (New 2012) with a new 5 gallon Propane tank (New 2012).

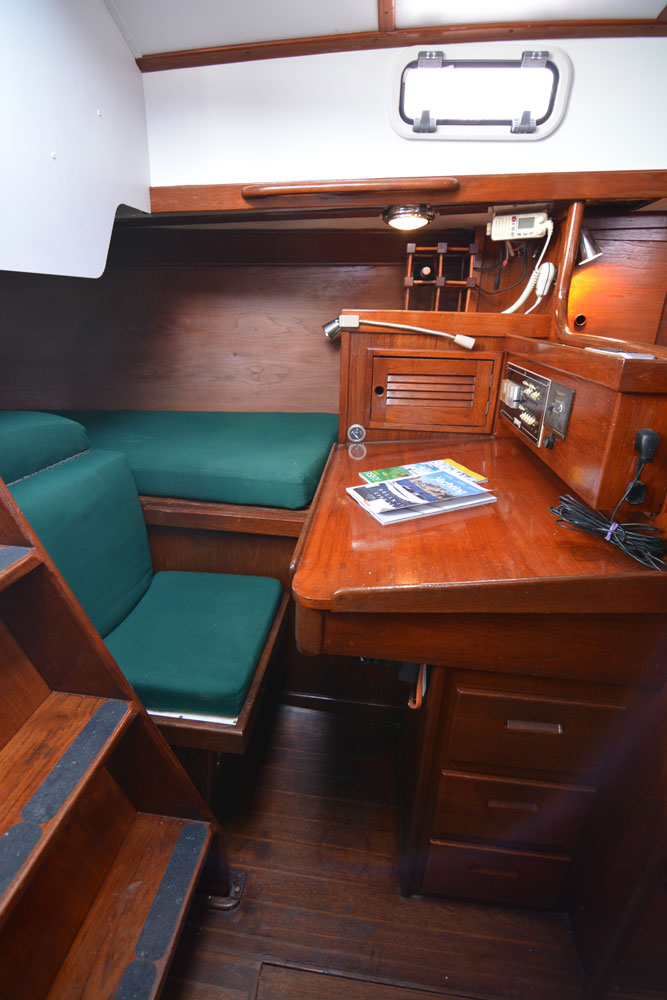

The Navigation Station is across to port. It has a unique seating arrangement, that folds up to form a quarterberth, and down to provide seating for the nav station. There is a chart light, one opening Port Light, Table storage, three drawers and a storage locker. Quarter Berth behind the nav station also has one fixed Port Light. The instrumentation panel at the nav station, hinges down to provide easy access.

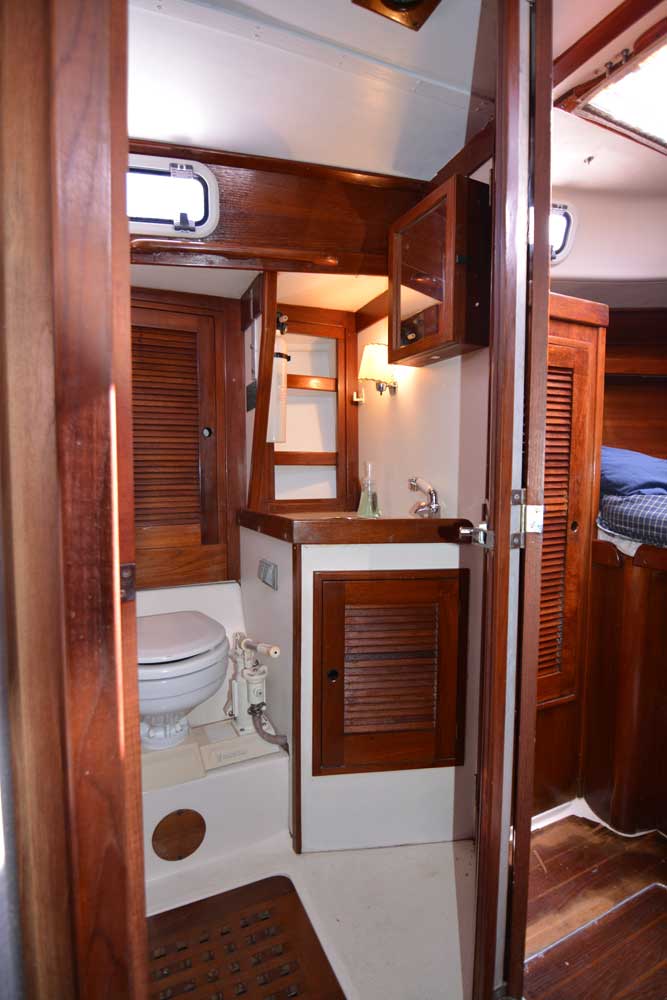

The head is forward of the salon and to port. It has a sink and a faucet which extends to become a shower (new 2012). There is a Raritan manual head (rebuilt in 2013) with 15 gallon holding tank, a shower drain and one opening Port Light. Forward is Tartan 37 galleythe Vee-berth. It is fitted with a new foam Mattress (New 2012). There are 2 opening ports, one large overhead opening hatch. you will find 2 hanging lockers and 3 storage drawers for all your gear.

The forward cabin is a vee berth arrangement with filler.  The head with shower is located next aft to port with a hanging locker and drawer opposite to starboard.

Sails and Rigging
Equipped for cruising, aluminum spar stepped on the keel, S.S. wire standing rigging, 10 regular and 2 self-tailing Lewmar winches, hydraulic backstay, 15 sails, adjustable whisker pole

155% Doyle Sail head sail 6.2 oz Quick Silver Square Weave Dacron – Reefing References at
140% and 125% (new 2004) on Harken Furler

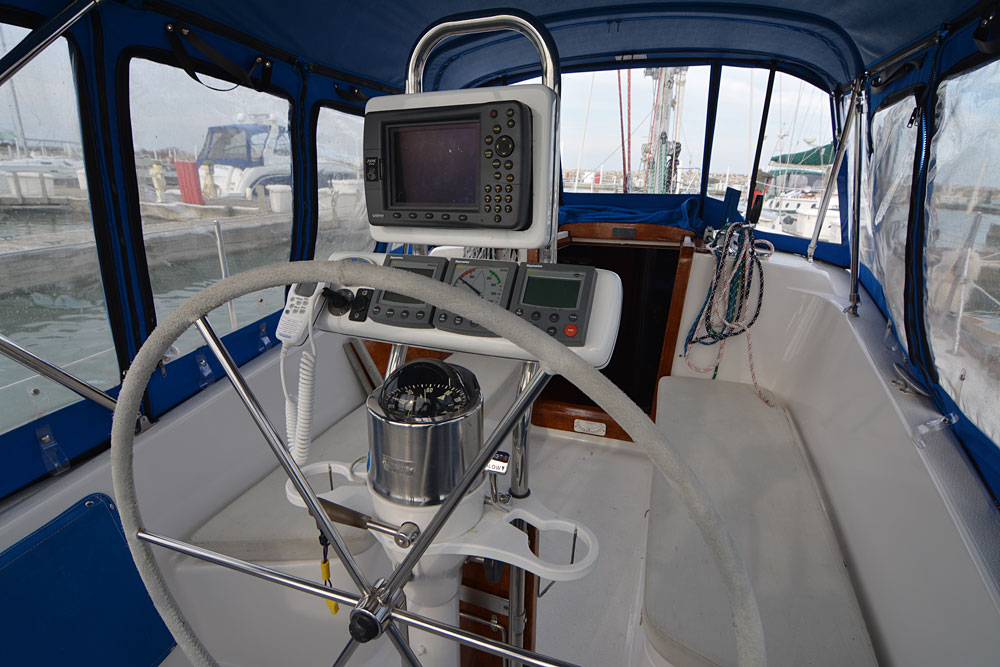

930 sq ft ¾ oz Doyle Sail APC Cruising Spinnaker with dowsing sleeve (new 2002)Tartan 37 helm
Doyle Sail 4 full Batten full roach mainsail with two reinforced reefing points with Stack Pack (new 2013)
Head sail Halyard and Sheets all new in 2014
Main Halyard new in 2013
Spinnaker Halyard new in 2013
Forestay, backstay, upper and lower shrouds (all new 2011)

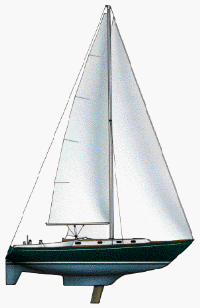

Windex (new 2011) Tartan 37 floorplan


Deck and Hull
Bow pulpit, side stanchions with double lifelines and gates, stern pulpit, swim ladder, fiberglass deck, fenders and lines, lifejackets, life ring, navigation lights, white hull, cradle.

2011 – New Bimini, dodger, connector and full enclosure (with windows and screens)

2009 – Hull was sandblasted and painted with 2 coats of Interprotect 2000/2001 barrier paint.
Two coats of Micron 66 red bottom paint was applied below the waterline.
2011 – Entire Deck, cabin house and cockpit area sanded and painted.

2011 – Replaced both overhead hatches (Lewmar Ocean Hatch 30, Lewmar Ocean Hatch 70) and all 9 cabin windows (8 X Lewmar opening portlights, 1 X Lewmar non-opening)
20Kg (44lb) Bruce Anchor
100ft 3/8in Galvanized Chain + 120ft of ½ rode
Simpson Lawrence Windlass

2X #44 Lewmar 2 speed self tailing primary in cockpit
#8 Lewmar single speed on cabin roof
#16 Lewmar single speed on cabin roof
#8 Lewmar single speed on boom
2X#30 Lewmar 2 speed on Mast
2x #16 2 speed on mast Tartan 37 nav

12V and 110V systems, two battery bankss with parallel switch, automatic battery charger, dockside electrical cables.

Three house batteries (new 2011)
1 starter battery (new 2011)
Switching panels at Nav-station
Guest Charge Pro Model 2614 battery charger (new 2003)

Engine and Mechanical
Phasor P4-37-5 (Kubota) Diesel, 37 HP (new 2008)
Twin Disc MG-360 Marine Transmission (new 2008)
Michigan Wheel 15X12 3 bladed Bronze prop and prop shaft (new 2008)
Packless Sealing System dripless packing gland (new 2008)
Delux Pasor engine control panel (new 2008)
Model 91-75 Balmar Alternator and Regulator
53 Gallon fuel tank, fuel gauge and filler tube (new 2014)

2X45 gallon water tanks
10 gallon water heater (110v and engine heat)
Water tubing (new 2014)
Par Max 3.0 50 PSI Model 31395-3000 water system pump (New 2013)
Foot pump faucet in Galley


Full Custom Winter cover and support structure (new 2011)
