2005 Roberts 45K custom ketch

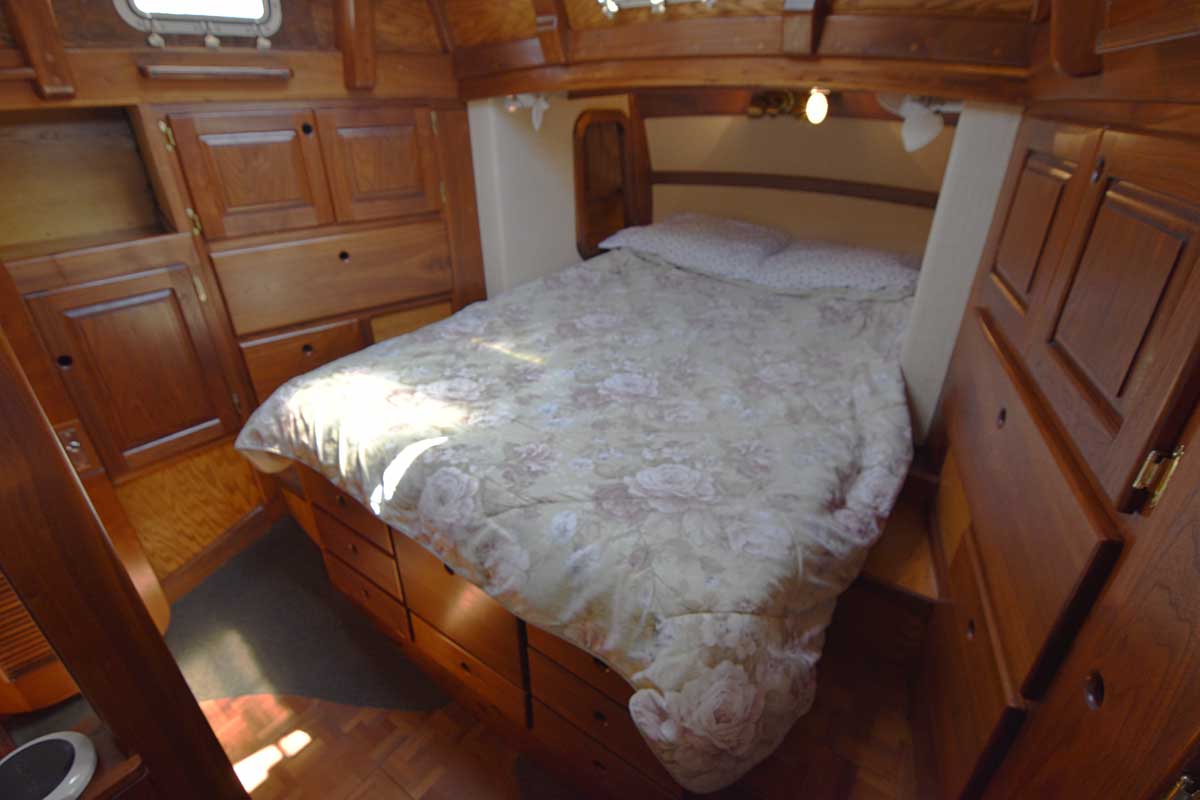

This is a custom built boat by the owner. Unlike so many, it is beautifully done and to professional standards. This is the ketch rigged, center cockpit version of the Roberts designed 45K. Built of hand laid fiberglass, and ready to sail anywhere, anytime. This is a center cockpit design, with an incredible master stateroom aft with a centerline island berth. The aft stateroom also has a workroom built into the perimeter, for work or repairs underway.

As you move forward, the engine compartment is in the center of the boat below the cockpit, and off to the starboard side is a comfortable see berth for great sleeping underway, or for extra guests. The boat has great access to the engine compartment and easy access to all filters and pumps.

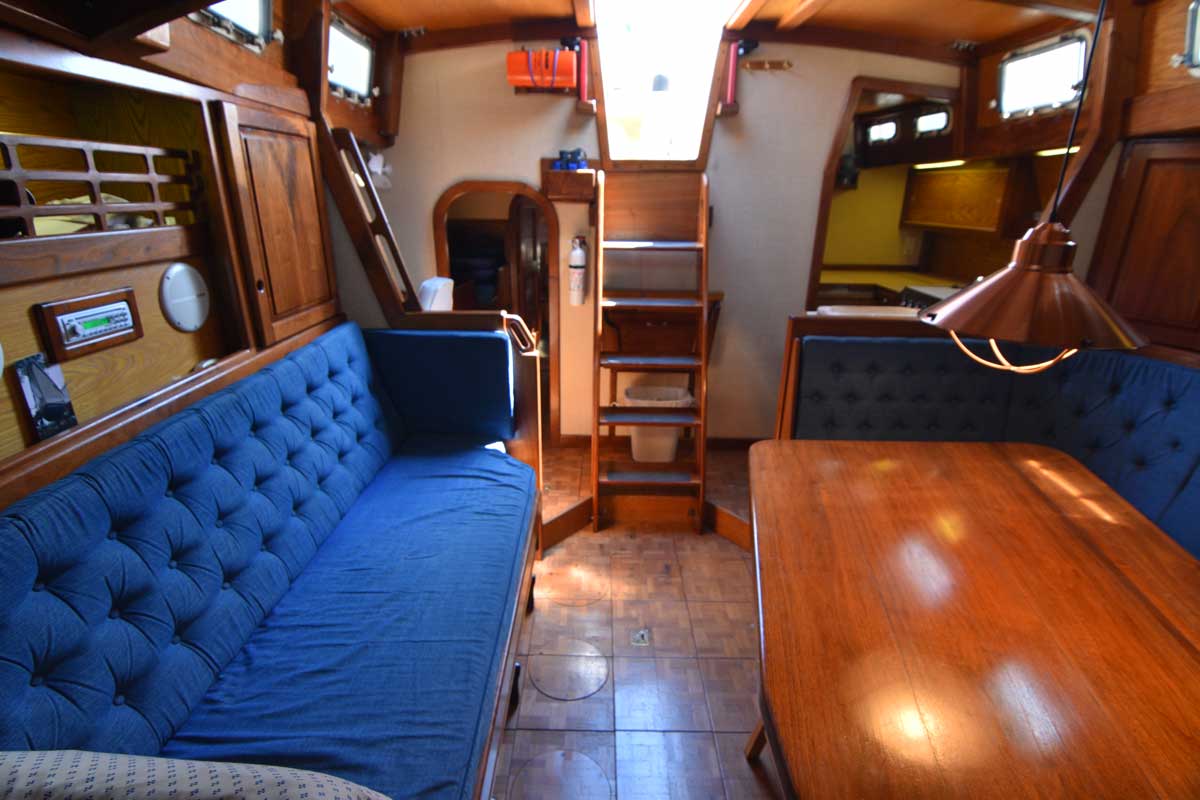

As you more forward into the salon, the nav station is immediately to your right, and the galley is wrapped around the companionway to port. Under the salon floor are the built-in fuel and water tanks. Next forward is the salon, with a U-shaped settee to port and a settee to starboard. Throughout the entire boat, you will find an amazing amount of storage, since the tankage is under the floor, all of the space under the berths is available for storage.

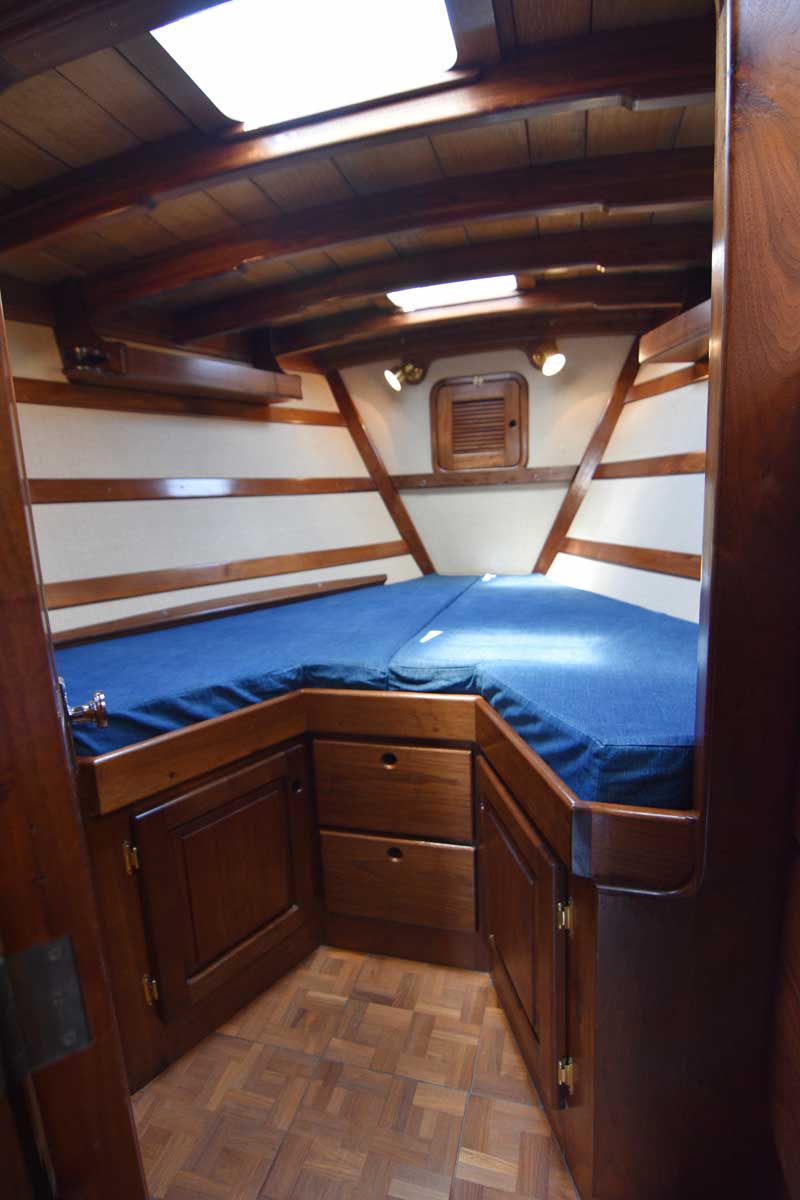

Still moving forward, the head with shower is forward of the salon and to port. And of course, the vee berth is next. The building built a really neat shelf that can be installed over the forward section of the berth, giving your guests a great place to store their belongings.

Accommodations and Cabin Details

• All cabinets are solid walnut (no veneer)
• Solid walnut trim (no veneer)
• White oak ceilings
• Solid teak parquet flooring
• Head room (floor to ceiling)

• Main salon – 7’6”
• Forward v-berth – 6’
• Aft stateroom – 6’6”
• Quarter berth – 6’4”
• Head/shower – 6’1”

Propane Gas
• 2 - 40# Manchester. propane tanks w/ transfer switch - 1 new is 2019, 1 in 2017
• Trident 2 stage regulator new in 2019
• Located in exterior locker on port side
• Trident Marine L.P. Gas System
• Maxitrop gas regulator RV47L

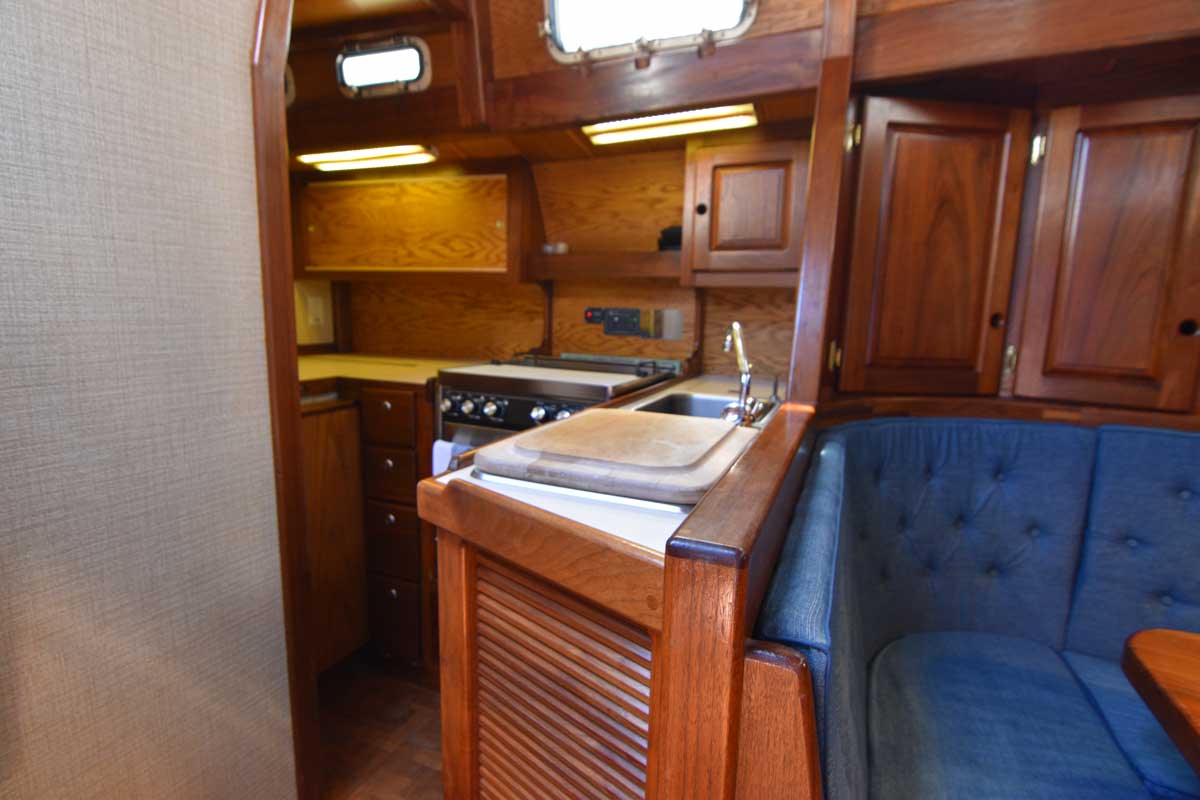

Galley Area
• Force 10 Propane Gourmet Galley Range – 3 burner/oven/broiler w/ brass griddle plate
• Dometic Adler Barbour Condensor Super Cold Machine (Aug 2018) refrigeration
• Dometic Adler Barbour Evaporator (Aug 2018)
• Auxiliary cooling capacity for tropical conditions (2018)
• Double stainless steel sinks
• One cutting board cover over one sink
• GE turntable microwave (2005)
• AC overhead table light 120V
• LED lights in galley

Air Circulation
• 11 cabin Caframo 2 speed fans - 12 volt

Water System
• 2 – 50 gal. molded-in water tanks
• March water pressure pump Model 893-04
• 2 GE SmartWater filter unit in head and galley (2012)
• Omnifilter unit on dock hose (2013)
• Sea-lect Diverting Valve under galley sink (2012)
• Galley - hot & cold water pressure with auxiliary foot pump
• Head - hot & cold water pressure with auxiliary foot pump
• Shower – hot & cold water pressure
• Bosch instantaneous gas tankless hot water heater ( 2004)

Dinnerware
• Place setting for 4 of Corelle dishes
• Silverware for 6
• Lg and sm frying pans

Mattresses
• Aft stateroom bed: 76”X 54”
• Quarter berth: 82” X 24”
• Forward v-berth” 78” X 84”, 24”

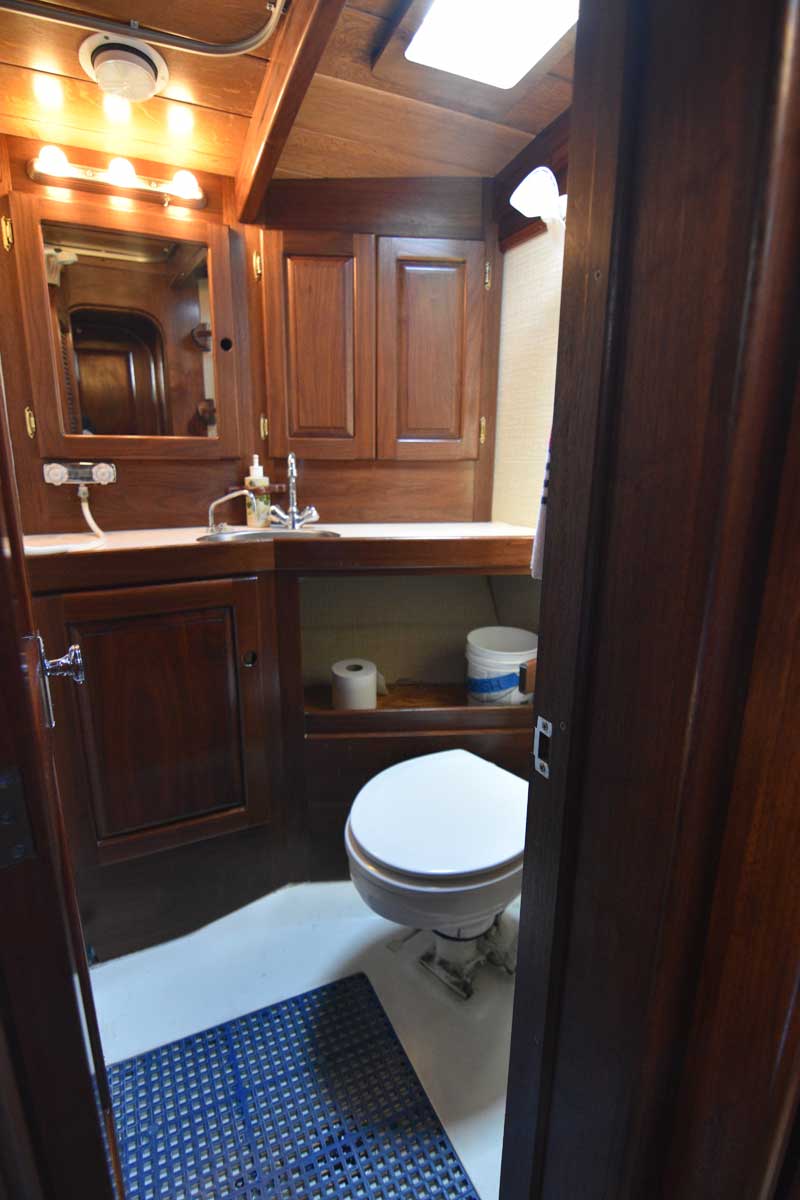

Heads and Waste System
• Groco Model K full size head (check valve replaced 2014)
• Groco service kit – 1 extra
• Groco raw water filter (toilet intake)
• 30 gal. molded-in holding tank with fill indicator
• Tankwatch Level Monitor System
• Shurflo Macerator

Features at-a-glance
LOD .................... 45'
LWL .................... 29' 10"
Beam .................... 13' 6"
Draft ...................... 7'
Displ .......... 30,000 # approx.
Ballast ........  10,500 # approx. lead


Electronics and Navigation

• Raymarine Pathfinder Radar and Chart Plotter (May 2005)
• Raystar 125 GPS Receiver - Raymarine
• Ritchie Helmsman Deck Mount Compass (April 2005)

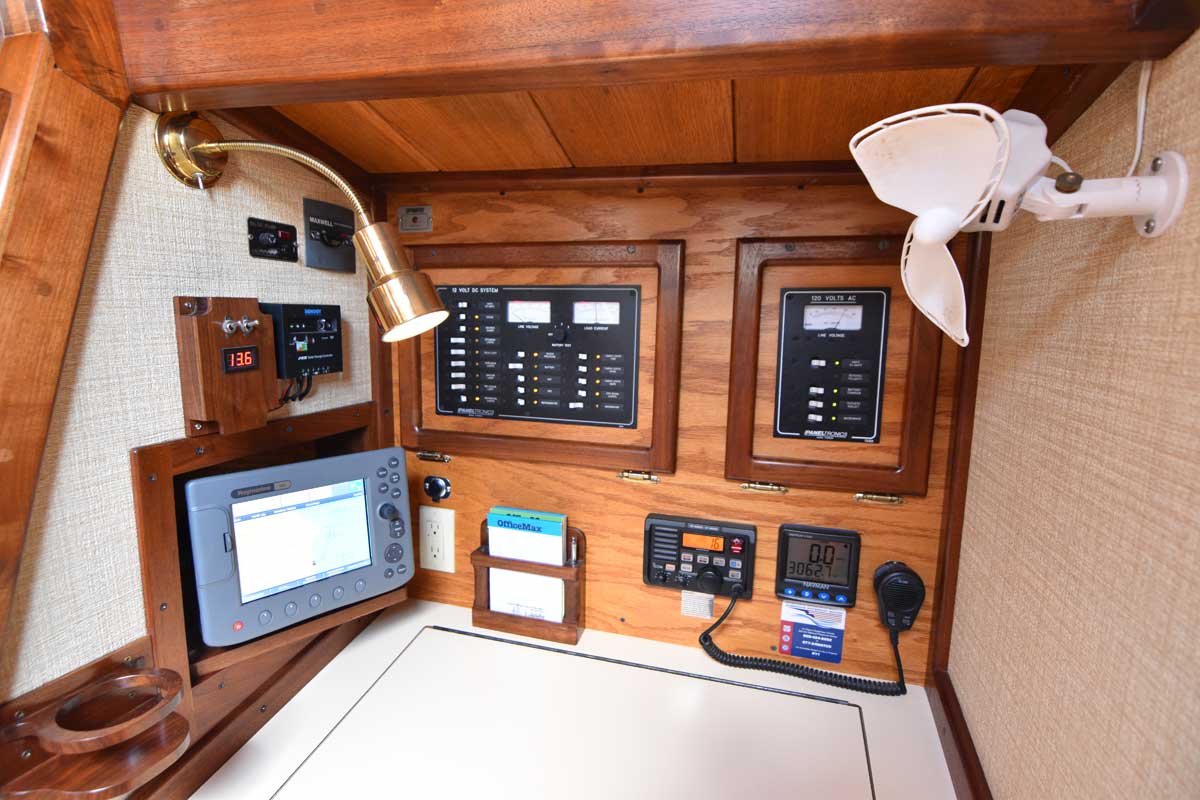

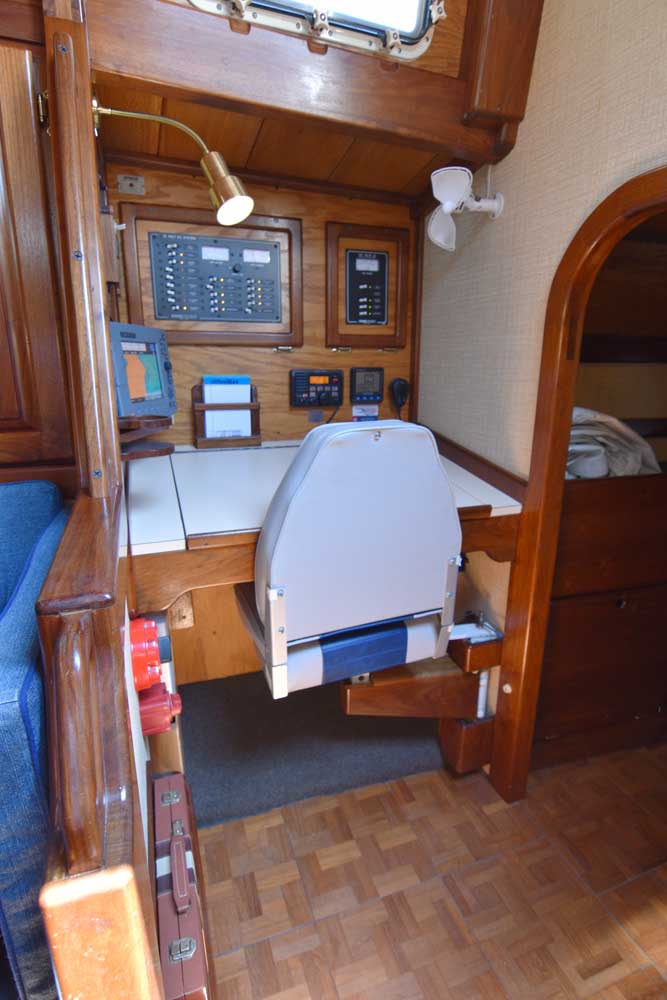

Installed at Nav Station

• Raymarine C80 Nav Display 8.4” RAYE02020
• Raymarine Raystar 125 GPS E32042
• Raymarine 18” 2KW Radome w/ 15m cable M92650-S
• installed with Seaview SM-18-R mast mount M92722
• Navionics chip (Aug 2005)
• Navman Repeat 3100 display
• ICOM VHF radio M502 (2005)
• ICOM command mic (2005)
• VHF Marine Transceiver IC-M502A (2005)
• PWM solar panel charge controller
• Perco engine battery switch
• Autopilot on/off control
• Maxwell anchor windless switch
• Holding tank full indicator
• NavBus

Autopilot
• Raymarine Evolution-400 P70 Sail Pack (2015)
• Raymarine Drive, Type 2 Linear (2015)
• Raymarine quadrant mounted autopilot (2015

Other

• MXD55 AM/FM/CD marine receiver radio w/ 2 speakers
• Chapman Book of Piloting and Seamanship
• Southern Lake Michigan Chart Book
• Lake Michigan Ports Book

Deck and Hull

Paint

• Deck painted w/ Interlux Brightside Hatteras Off White (2016)
• Bottom scraped and repainted (2015):
• Interprotect 2000 grey and white
• Interlux Micron CSC – blue
• Bottom painted w/ Micron CSC blue (2019)
• Approx. 1 gal of Micron CSC goes with the boat

All 6 thru-hulls fitted with seacocks (2 bath, 1 galley, 1 engine, 1 coolant for fridge, 1 sea water)
• 2 Solar Nicro panel fans (over wet locker & head) (Aug 2017)
• Life Sling Man-Over-Board Safety Retrieval equipment
• AQUA Signal series 20 stern light
• Swim ladder 6-step from West Marine

At Steering Pedestal
• NavPod Wind 3100 Speed 3100 (repaired Sept 2015) Depth 3100 (repaired Sept 2015)
displays (In Hull Through Hull)
• Engine control panel
• Autopilot control panel
• Custom made auxiliary cockpit table
• VHF remote mic

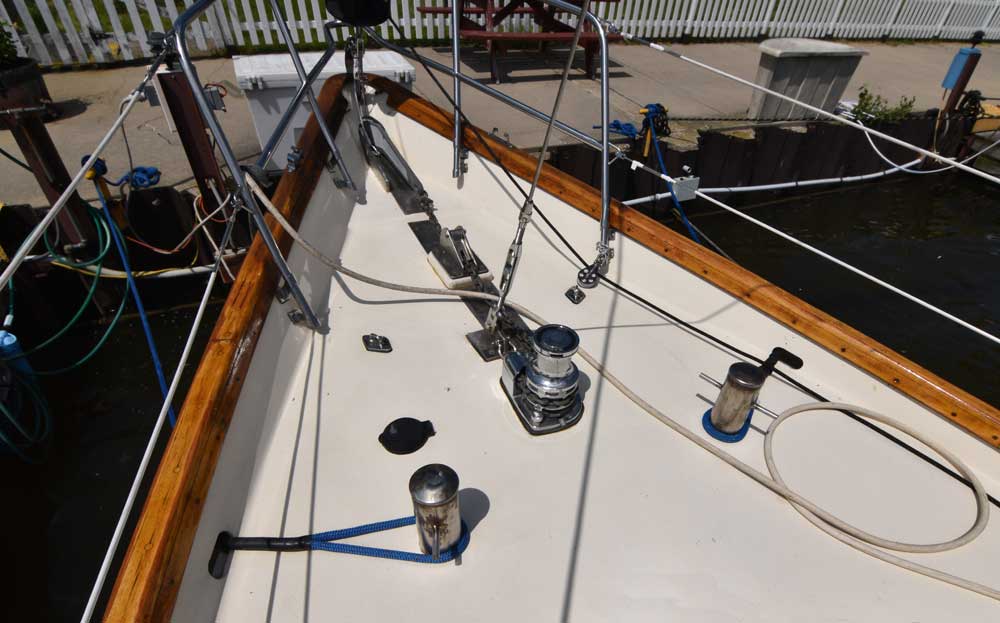

Windlass
• Maxwell VWC 1200 Series P12427 (2005)
• Maxwell windlass foot switch (replaced 2011)
• Maxwell 135 amp breaker/isolator

Anchoring
• 1 Delta anchor at bow
• 1 40# Bulwagga anchor (quick assembly) in storage comp.
• 1 10# Danforth anchor in storage comp.
• 275’ high test 5/16” chain

Fenders and Lines
• 6 dock lines
• 11 bumpers (4 lg, 5 med, 2 sm)
• Reefing lines and ties

Mast lights
• Tricolor
• Steaming Light
• Spreader lights
• Anchor lights

Hatches/Ports
• 5 Bomar molded opening hatches w/ custom made screens
• 15 Bomar molded opening ports with screens

Bilge Pumps
• 2 – Rule Mate bilge pumps Model RM 750 (located in engine room)
• Rule Industries Shower drain 800 GPH pump

Emergency Tiller

Mast and Rigging

• Spars all AWL grip coated from JSI St. Pete FL
• Garhauer stanchions
• Tops-in-Quality custom made bow and stern pulpits (2004)
• Windex15 wind vane

Winches – all Anderson
• 2 – 46 2 speed self-tailing
• 2 – 40 2 speed self-tailing
• 2 – 12 single speed self-tailing
• 2 – 10 single speedast

Cockpit

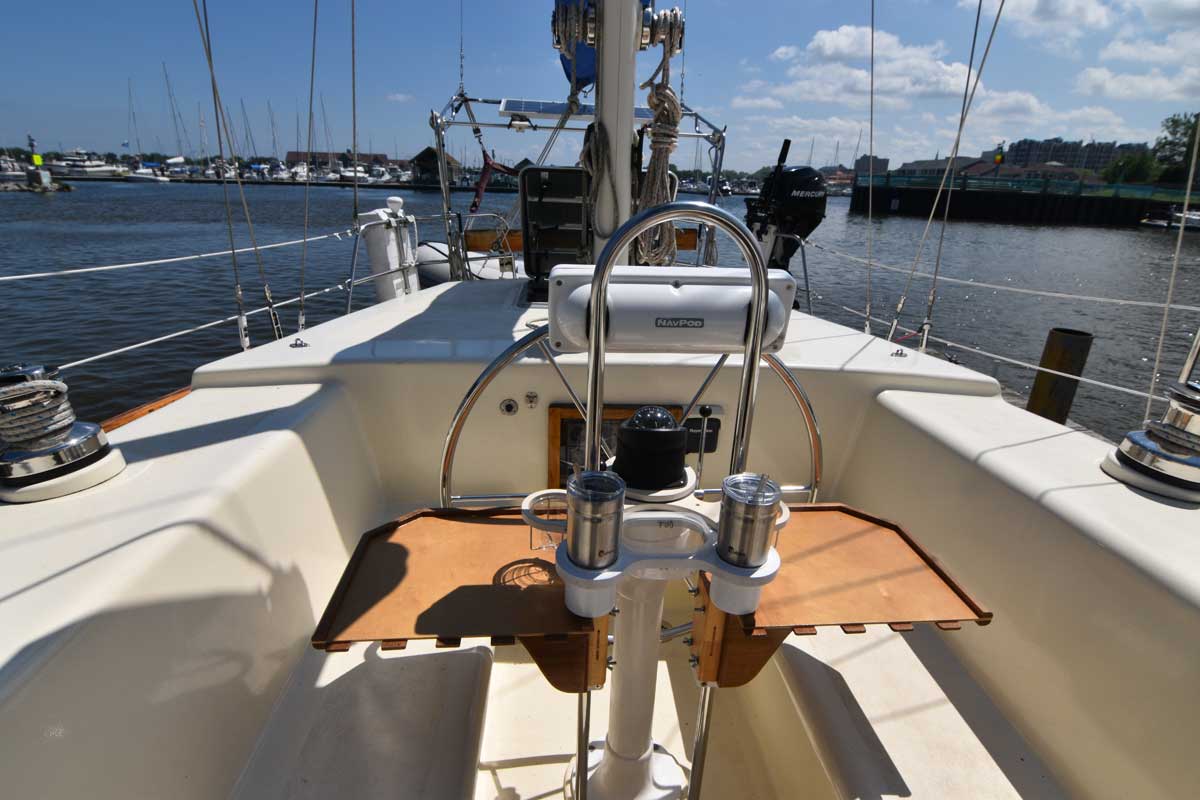

The center cockpit design of the boat, allows the spacious aft stateroom. The cozy cockpit is comfortable, and is also designed to allow the occupants great visibility and to stay dry. The owner also designed and built a unique cockpit table that mounts on the pedestal for the helm, and then the table can be pivoted and split in half for the best usage.

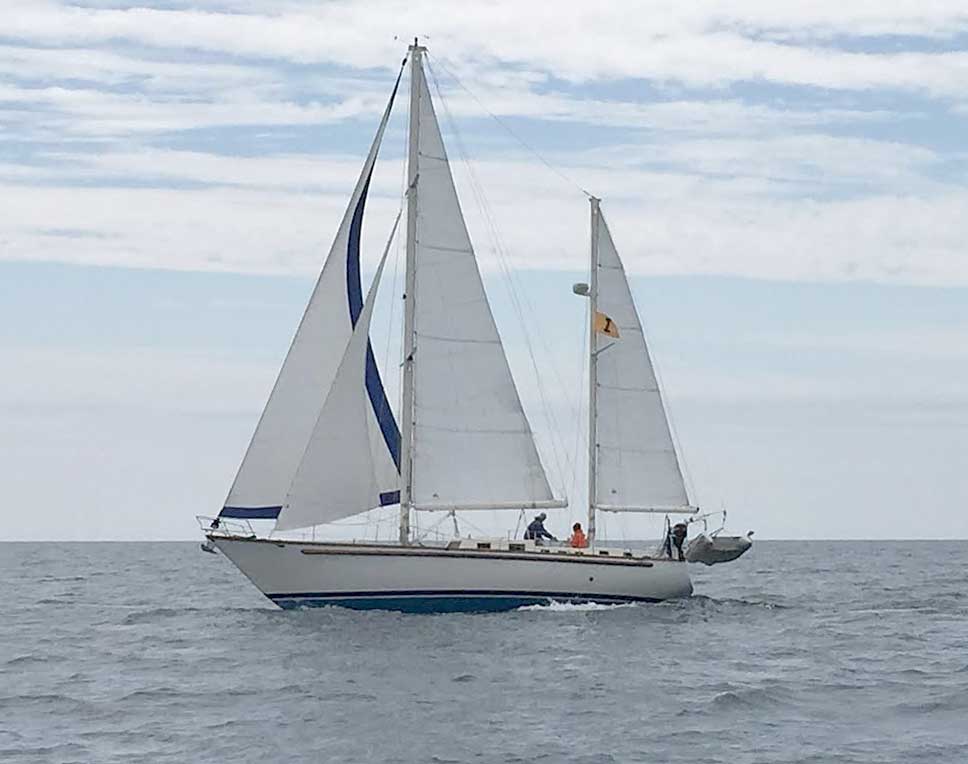

Sails

DOYLE from JSI in St. Pete, FL (2005)
• Main – 360 sq. ft.
• Mizzen – 170 sq. ft.
• Jib – 476 sq. ft.
• Staysail – 174 sq. ft.

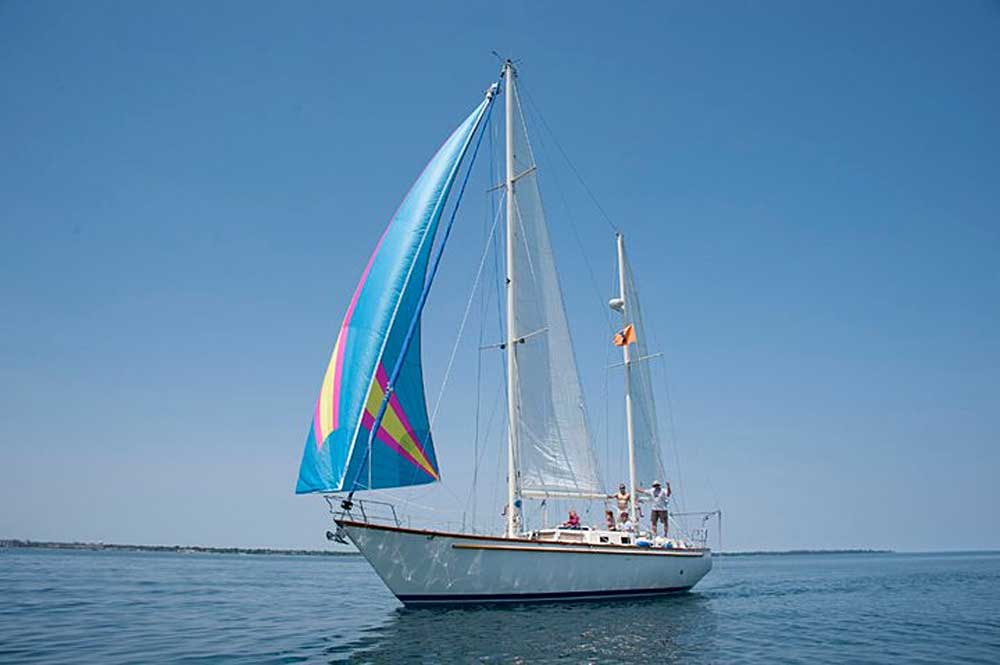

• UPS (Utility Power Sail) w/ sock – 650 sq. ft.
• Lazy jacks for main and mizzen (JSI Marine)
• Sail covers for main and mizzen
• 2 winch handles and custom made holders
• Multiple sail ties and 2 sail bags
• Harken Jib Reefing and Furling System

Engine and Mechanical

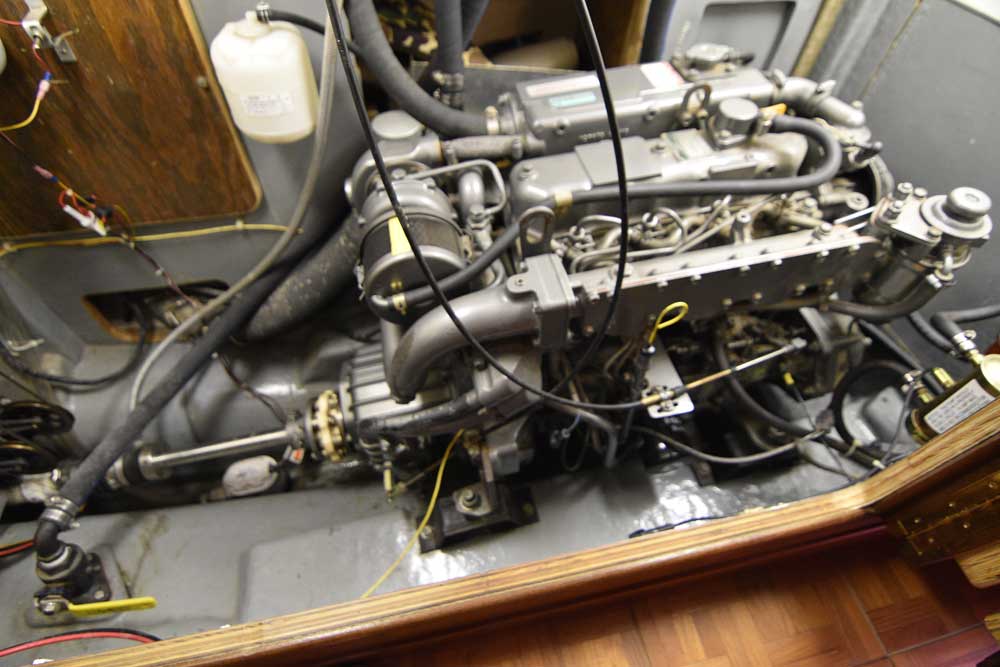

• Yanmar 75 hp turbo charged diesel 4JH3-TE w/ under 475 hours
• Yanmar engine control panel (in cockpit)
• Topsider Oil Changer (July 2008)
• DetMar Tunnel engine blower fan
• 100 gal. molded-in diesel fuel tanks

Dripless Shaft Seal
• PYI, Inc Packless Sealing System
• PSS shaft seal – stuffing box

Propeller
• 19” diameter
• 16 pitch approx.
• Kanzaki KBW21 transmission
• Zinc Anode

Electrical and Charging System

4 Trojan T105 6 volt (July 2018) – house batteries
• 1 Duracell 12 volt (July 2018) starting battery
• Perko Battery switch (at Nav station)
• In-Line Bilge Blower fan by Rule (located in battery compartment)

Solar Panel
• Renogy RVG-100D 36 cells (2016)
• Located on dinghy davits with adjustable angles

Battery Charger
• Xantrex 40 amp charger (2015)

Shore Power
• Marinco power cord plus cordset 50 ft. 30 amp

Electrical
• 7 GFCI outlets – AC
• 3 outlets - DC
• Grounding Plate – Guest Dynaplate

Electrical Panel

• 4 circuit breaker Paneltronics AC panel
• 19 circuit breaker Paneltronics DC panel

Additional

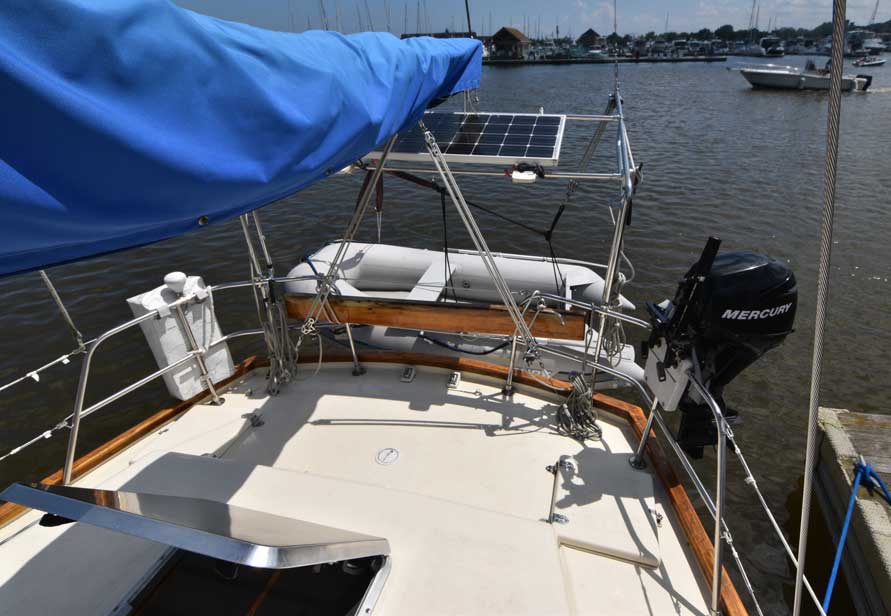

• Dinghy included 8 ½ ft. Mercury 270 Airdeck Inflatable grey dinghy with cover (2007)
Garhower dinghy davits
8 hp Mercury outboard w/ less than 10 hours
Fuel tank for outboard
• 3 fire extinguishers
• Orion Handheld Signal Pack w/ flare gun
• 10 assorted life jackets
• 2 red floatable cushions
• 2 blue foldable chair cushions
• Deck scrub brush
• Perko door hardware
• 7 sets of 3 hooks - brass clothing hooks
• 1 gallon Wet/Dry shop vac
• Electric Heater - Pelonis
• Wooden Stool for extra table seat
• Bosun’s Chair by West Marine (June 2009)
• 8 adjustable jack stands

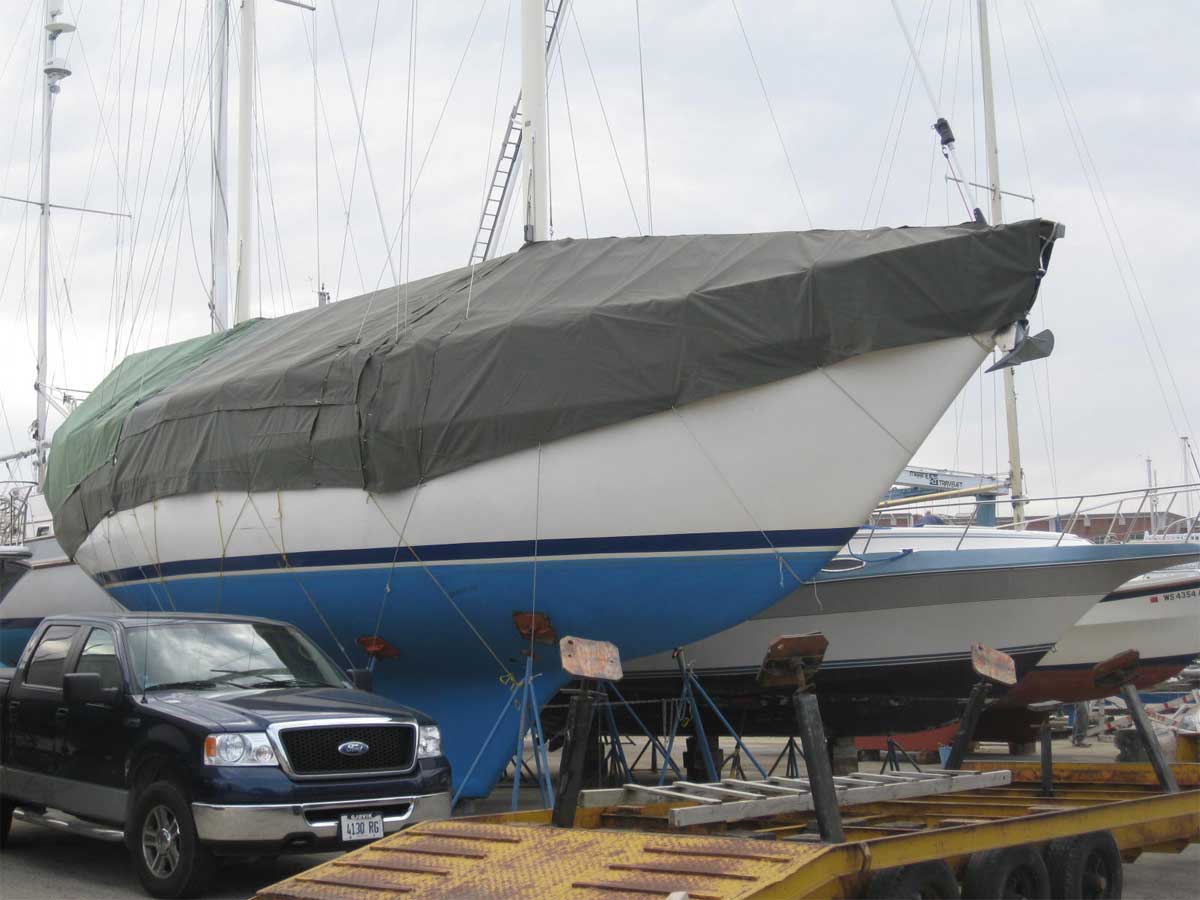

• Canvas and framework for winter storage

     Email for more pictures ...... inside and out ! Lots more to email.
In the water and ready to view. BEAUTIFUL.

Asking Price $ 98,000.00
Located in Racine, WI
